Containers

Nemesis has the ability to process the files extracted/carved from various container formats without saving the container itself to the internal datalake. This is useful the the following situations:

  • When you want to process a large number of files without doubling the storage (storing .zip + extracted files)
  • When you want to process large "containers" like forensic disk images

Submitting Containers

"Regular" Containers

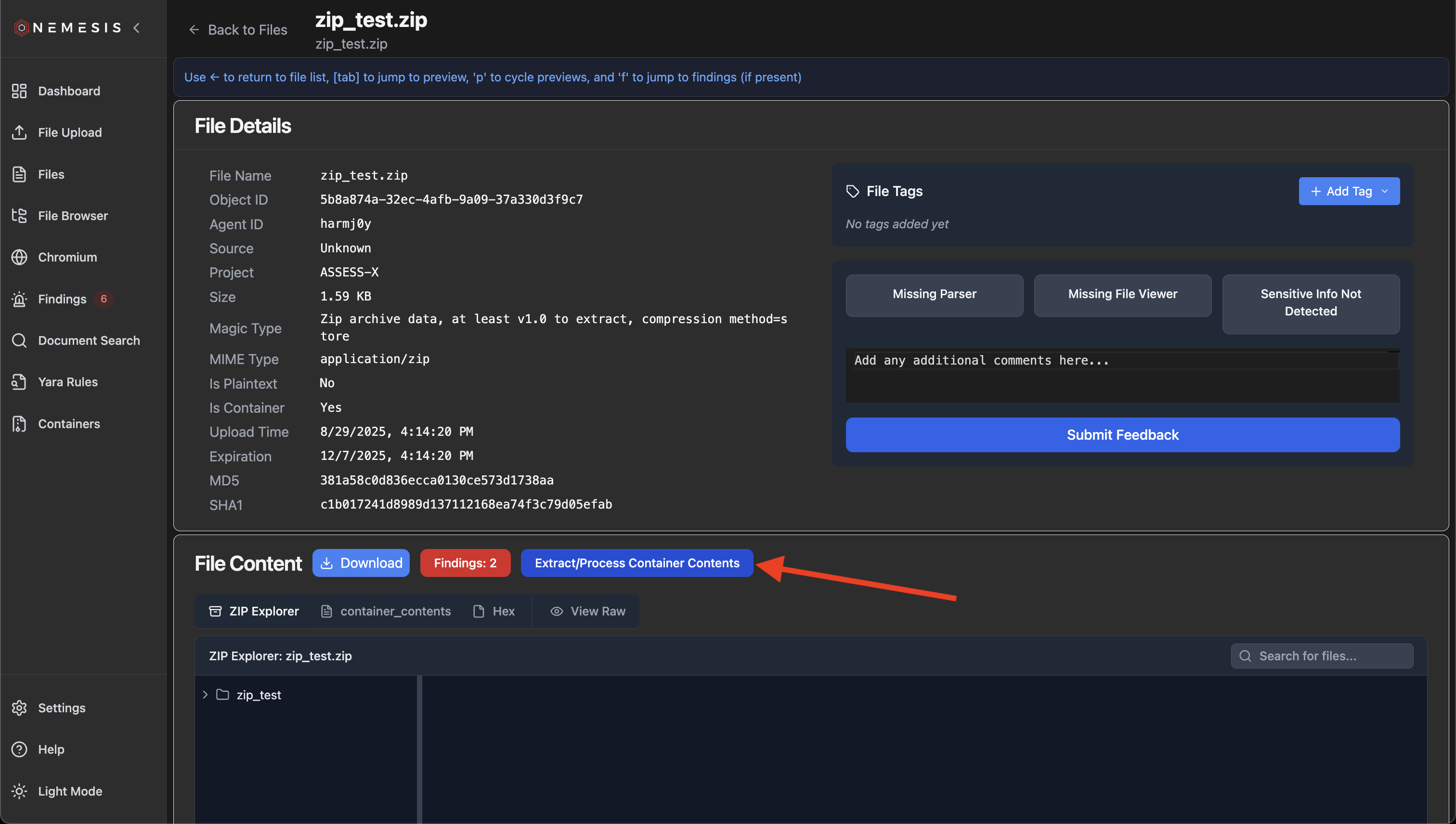

To process a regular container, you have two options. First, you can submit the .zip/etc. as normal, and then click "Extract/Process Container Contents" on the file viewer page:

Extract/Process Container Contents

Alternatively, you can configure and drop containers into the mounted folder as described in the "Large" Containers section below.

You can also submit the container with the nemesis-cli (and ./tools/submit.sh script) with something like (note the --container flag):

% ./tools/submit.sh --project PROJECT-123 --source DEV --container zip_test.zip
Uploading (✓:1 ✗:0 | 1.59 KB): 100%|██████████| 1/1 [00:00<00:00]
INFO
Upload Summary:
INFO     ────────────────────────────────────────
INFO     Total Files:     1
INFO     Successful:      1
INFO     Failed:          0
INFO     Success Rate:    100.0%
INFO     Total Uploaded:  1.59 KB

"Large" Containers

For large things like disk images, a straight REST API doesn't cut it - lots of things mess up. Getting a multi-gigabyte file into Nemesis can be a challenge, but the current process uses a mountained container and large container monitoring abilities in the web-api service.

In order to process really large containers, first create a folder on your host and set the MOUNTED_CONTAINER_PATH ENV variable to that path. This folder is mounted into the web-api and will process containers that appear there (after they're done copying in). Then just start Nemesis and copy containers into that folder, it's that easy!

Wait, but what about metadata?

Large Container Configs/Metadata

Since we're changing the normal way we submit files, we need a new way to pass metadata into Nemesis for a disk image/large container. In order to accomplish this, we support a YAML-based metadata file format that can be placed in the parent folder, or any sub folders. This file can be named config.[yaml|yml] or settings.[yaml|yml] and takes the form:

metadata:
  project: project123
  agent: collector
  source: BLAH
file_filters:
  pattern_type: regex
  include:
    - "^(?:[A-Za-z]://|/)?[Ww]indows/[Ss]ystem32/config/"
  exclude:
    - "^(?:[A-Za-z]://|/)?[Ww]indows/"

The metadata will be passed through for every file carved from the container. The optional file_filters allow you specify which extracted/carved files to include, or not include, for processing.

The logic for inclusion varies based on which patterns are provided:

  1. No filters: Include everything
  2. Only include patterns: Only include files matching include patterns (allowlist mode)
  3. Only exclude patterns: Include everything except files matching exclude patterns (blocklist mode)
  4. Both include and exclude: Include everything, apply excludes, then re-include matches from include patterns (exception mode)

This creates a natural hierarchy where include patterns act as exceptions to exclusions when both are present.

You can also create sub-directories in the submission folder, for example:

MOUNTED_CONTAINER_PATH  /   settings.yaml
                        /   disk1.dd
                        /   windows /
                                    / settings.yaml
                                    / windows_disk.dd

In this case, the settings.yaml closest to the hierarchy of the file takes precedence - the "windows_disk.dd" will use the settings.yaml in its current folder, but would use the MOUNTED_CONTAINER_PATH/settings.yaml file if one wasn't present lower down. This lets you create a nested structure with multiple config options depending on where you drop your disk image.

Tracking Containers

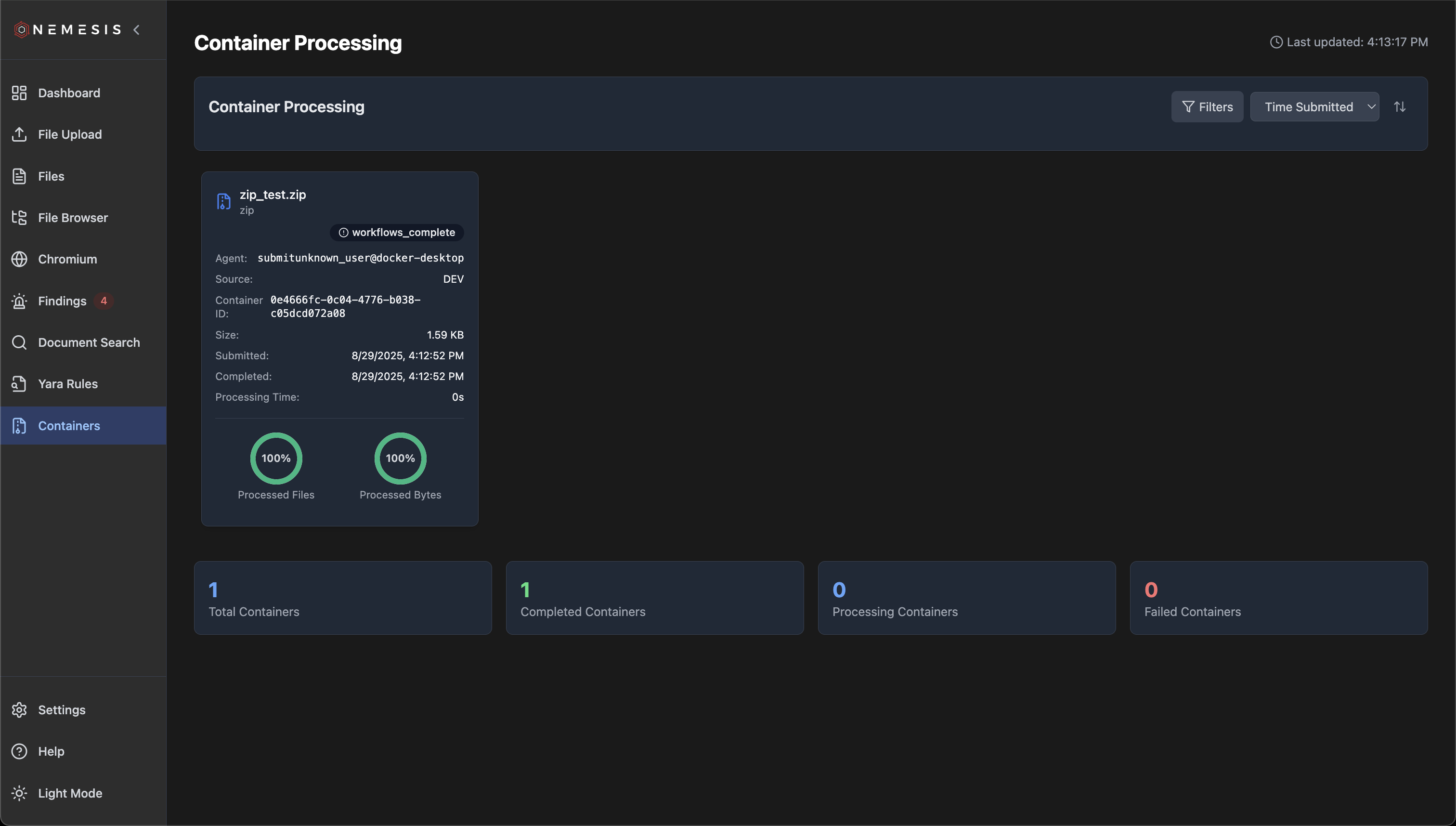

Whether a container is submitted via the cli or the mounted folder option, it will appear in the "Containers" page accessible from the left navigation page:

Containers Dashboard

This page will show the status of the container file extraction, and lets you filter by various fields.
