Hasura

Nemesis uses Hasura to wrap the PostgreSQL backend to easily build a GraphQL and REST API for the structure Nemesis data model.

Navigating to the "Help" menu reachable in the bottom left of the Nemesis interface and clicking the /hasura/console/ route link will take you to the Hasura login. Enter the value of the HASURA_ADMIN_SECRET ENV variable to login. With Docker Compose, ./tools/nemesis-ctl.sh generates a random secret on first run and stores it in .env; with Helm, a random secret is generated on install and stored in the nemesis-secrets Secret (kubectl get secret nemesis-secrets -n <namespace> -o jsonpath='{.data.HASURA_ADMIN_SECRET}' | base64 -d).

Access model

  • The web UI calls Hasura at /hasura from the browser without the admin secret, behind the same Traefik login as the rest of Nemesis. Those requests get the restricted operator role (HASURA_GRAPHQL_UNAUTHORIZED_ROLE), defined in infra/hasura/metadata/tables.yaml (mirrored in k8s/helm/nemesis/files/tables.yaml): it can read every tracked table and make only the writes the UI itself makes (triage entries, file views, feedback, file tags, Yara rules, alert settings, agent prompts, and deleting file links). It has no access to the SQL (run_sql) or metadata APIs.
  • Nemesis services, Jupyter, the CLI and the Hasura console use the admin secret (HASURA_ADMIN_SECRET), which is never sent to the browser.

If you add a UI feature that writes a new table or column through GraphQL, add a matching insert_permissions / update_permissions / delete_permissions entry for the operator role in both metadata files.

Console

The Hasura console allows you to explore the pre-configured backend data schema, which allows you to explore the schema and query data:

Hasura's Console

Note: There is a quickstart to Hasura queries here.

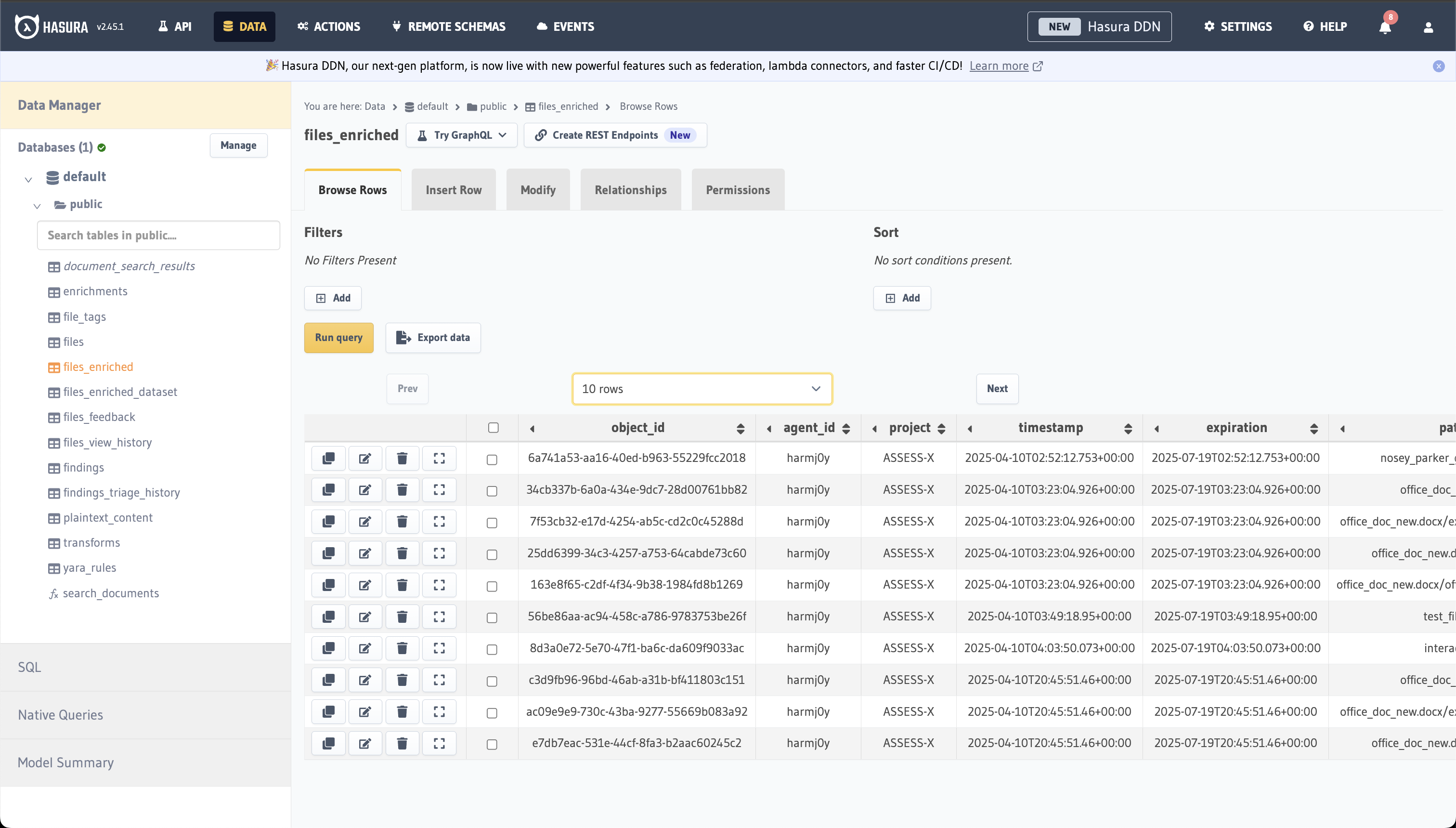

The "Data" tab on top allows you to query the database in a more traditional manner:

Hasura Data

Scripting

Hasura allows for external queries and subscriptions to the backend schema, very similar to Mythic:

Queries

Here is an example of performing a basic query against the Hasura Nemesis endpoint:

from base64 import b64encode
from gql import Client, gql
from gql.transport.aiohttp import AIOHTTPTransport
from gql.transport.websockets import WebsocketsTransport
from pprint import pprint
import ssl

HASURA_ENDPOINT = "https://localhost:7443/hasura/v1/graphql"
BASIC_AUTH_USERNAME = "n"
BASIC_AUTH_PASSWORD = "n"
ssl_context = ssl.create_default_context()
ssl_context.check_hostname = False
ssl_context.verify_mode = ssl.CERT_NONE

def basic_auth(username, password):
    token = b64encode(f"{username}:{password}".encode('utf-8')).decode("ascii")
    return f'Basic {token}'

transport = AIOHTTPTransport(
    url=HASURA_ENDPOINT,
    headers={'Authorization': basic_auth(BASIC_AUTH_USERNAME, BASIC_AUTH_PASSWORD)},
    ssl=ssl_context
)

client = Client(transport=transport, fetch_schema_from_transport=True)

query = gql(
    """
query MyQuery {
  files_enriched {
    path
    magic_type
    hashes
    size
  }
}
"""
)

results = client.execute(query)

pprint(results["files_enriched"])

Subscriptions

TODO
